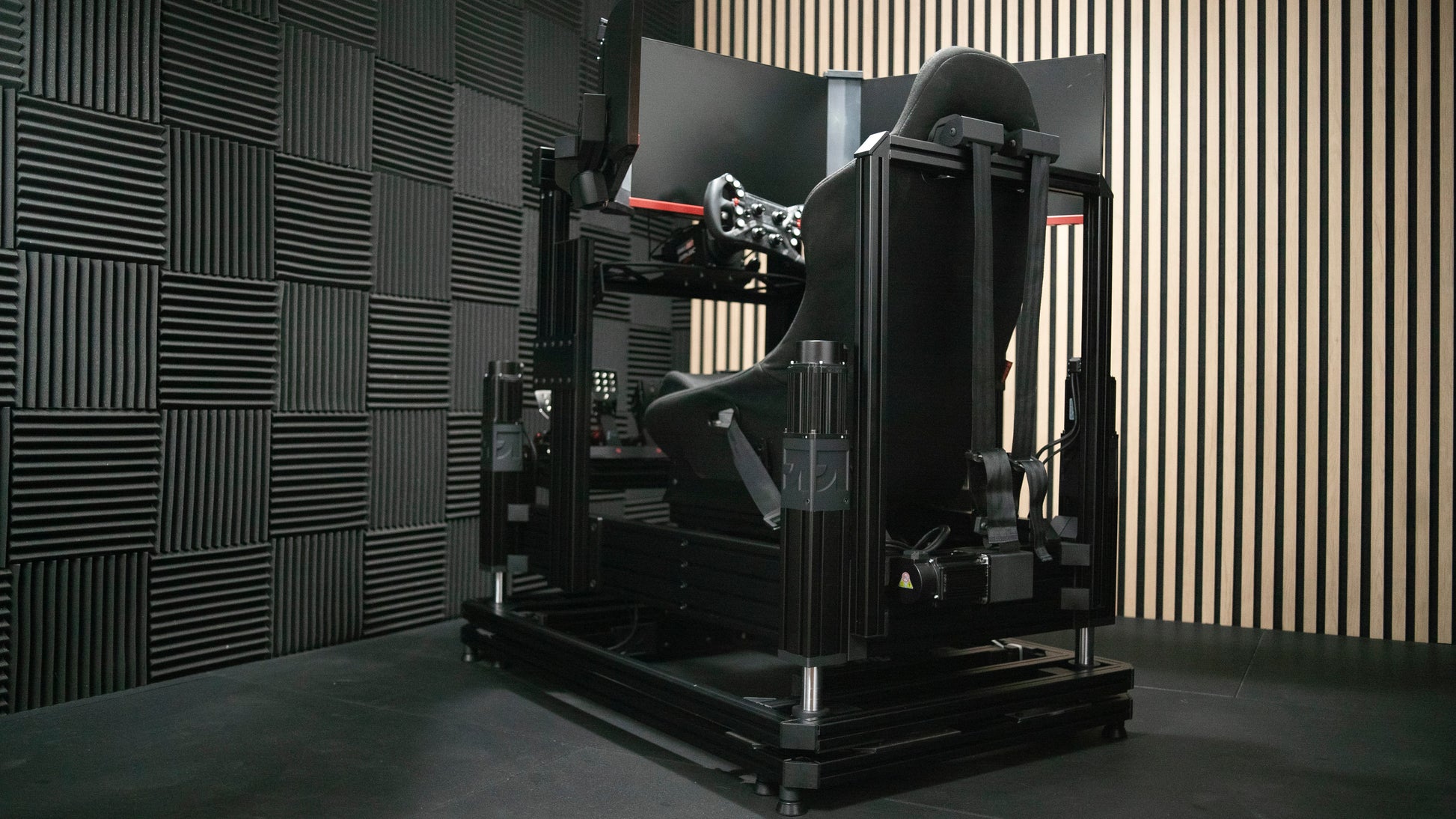

TSR-1G

TSR-1G 3DOF + Double Traction loss + Belt TensionerMotion Simulator:

Ultimate Precision and Performance

The TSR-1G Motion Simulator offers an unparalleled experience for sim racing enthusiasts, combining cutting-edge technology with precise motion control to deliver an immersive and dynamic racing experience. Designed with the latest advancements in motor and actuator technology, the TSR-1G provides unmatched feedback, responsiveness, and accuracy.

Key Features:

• Precision and Resolution:
  Equipped with a 10,000 PPR encoder, the TSR-1G offers ultra-high resolution, detecting even the smallest movements of 0.5 µm (0.0005 mm) for exceptional position control.

• Latency and Response Time:
  With a signal processing latency of less than 1 ms and an ultra-fast pulse interval of 2 µs (pulse frequency of 550,000 Hz), you’ll experience near-instantaneous response times.

• Vibration & Dynamic Performance:
  Capable of delivering vibrations up to 125 Hz, the TSR-1G is optimized for short travel (1 mm) with maximum precision, ideal for haptic feedback from suspensions, road texture, engine vibrations, gear shifts, and ABS simulations.

• Piston Stroke and Speed:
  Featuring a 150 mm stroke with an additional 5 mm safety margin, the TSR-1G boasts a linear speed of up to 250 mm/s (with a 500 mm/s version in development), ensuring rapid and precise movements without compromising accuracy.

• Acceleration & Force:
  With a maximum acceleration of 0.8 G, the TSR-1G provides quick responses to input changes and is capable of lifting up to 300 kg using 4 actuators, making it ideal for high-load applications.

• Motor Performance:
  Powered by robust motors with a peak torque of 7.1 Nm, the TSR-1G ensures consistent, reliable performance over extended periods of use.

• Software & Customization:
  Fully compatible with SimHub, a widely used application in the sim racing community, no additional software downloads are required for seamless integration.

• Safety & Build Quality:
  Designed for demanding environments, the TSR-1G features integrated safety features such as end-of-travel limits, accident detection, and an emergency stop button, ensuring safe operation at all times.

• Compact Design & Easy Installation:
  The TSR-1G offers an ultra-compact design, allowing for easy mounting directly to your cockpit without the need for bulky platforms, saving space and simplifying installation.

• Traction Loss Simulation:
  Featuring an impressive 25-degree platform rotation range, the TSR-1G simulates front and rear traction loss, perfect for drifting or rally cross experiences.

• Belt Tensioner with Ultra-High Resolution:
  The TSR-1G’s 250 N belt tensioner with 0.0005 mm resolution delivers accurate feedback on weight transfer, gear shifts, and traction control.

Specifications:

• Maximum Speed: 250 mm/s per actuator
• Maximum Acceleration: 0.8 G
• Actuator Stroke: 150 mm (with 5 mm safety margin)
• Latency: <1 ms
• Maximum Vibration Frequency: 125 Hz
• Encoder Resolution: 10,000 PPR
• Maximum Load per Actuator: 75 kg
• Load Capacity: 300 kg (for the entire system)
• Motor Peak Torque: 7.1 Nm

Weight and Shipping Optimization:

The TSR-1G has been designed with logistics in mind, significantly reducing weight compared to other motion simulators like Qubic. With a total system weight of approximately 110 kg, it is easier to handle and more cost-effective to ship.

This reduction in weight not only simplifies shipping but also strengthens our commitment to providing practical and cost-efficient solutions for sim racing enthusiasts.

What's Included:

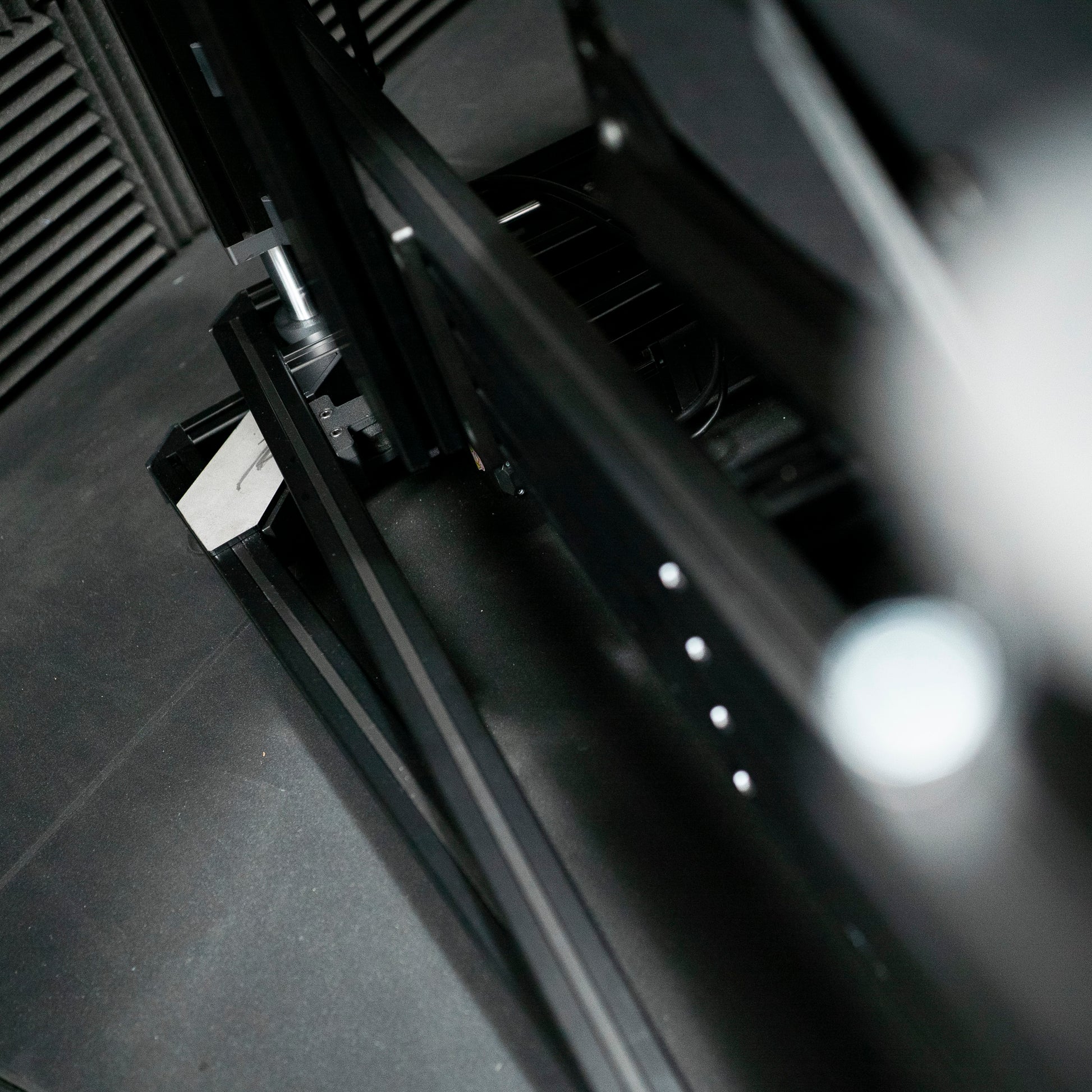

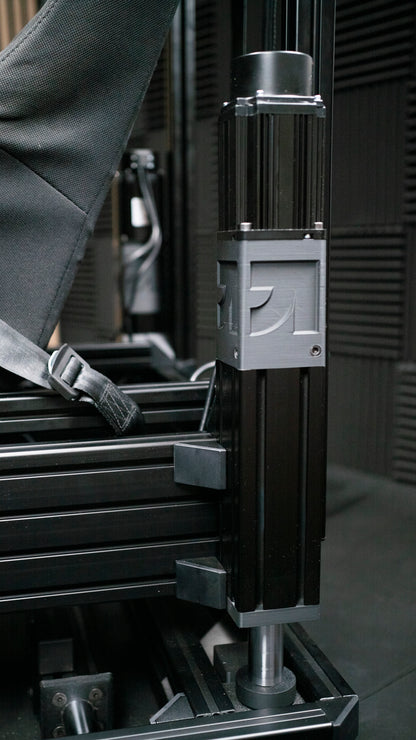

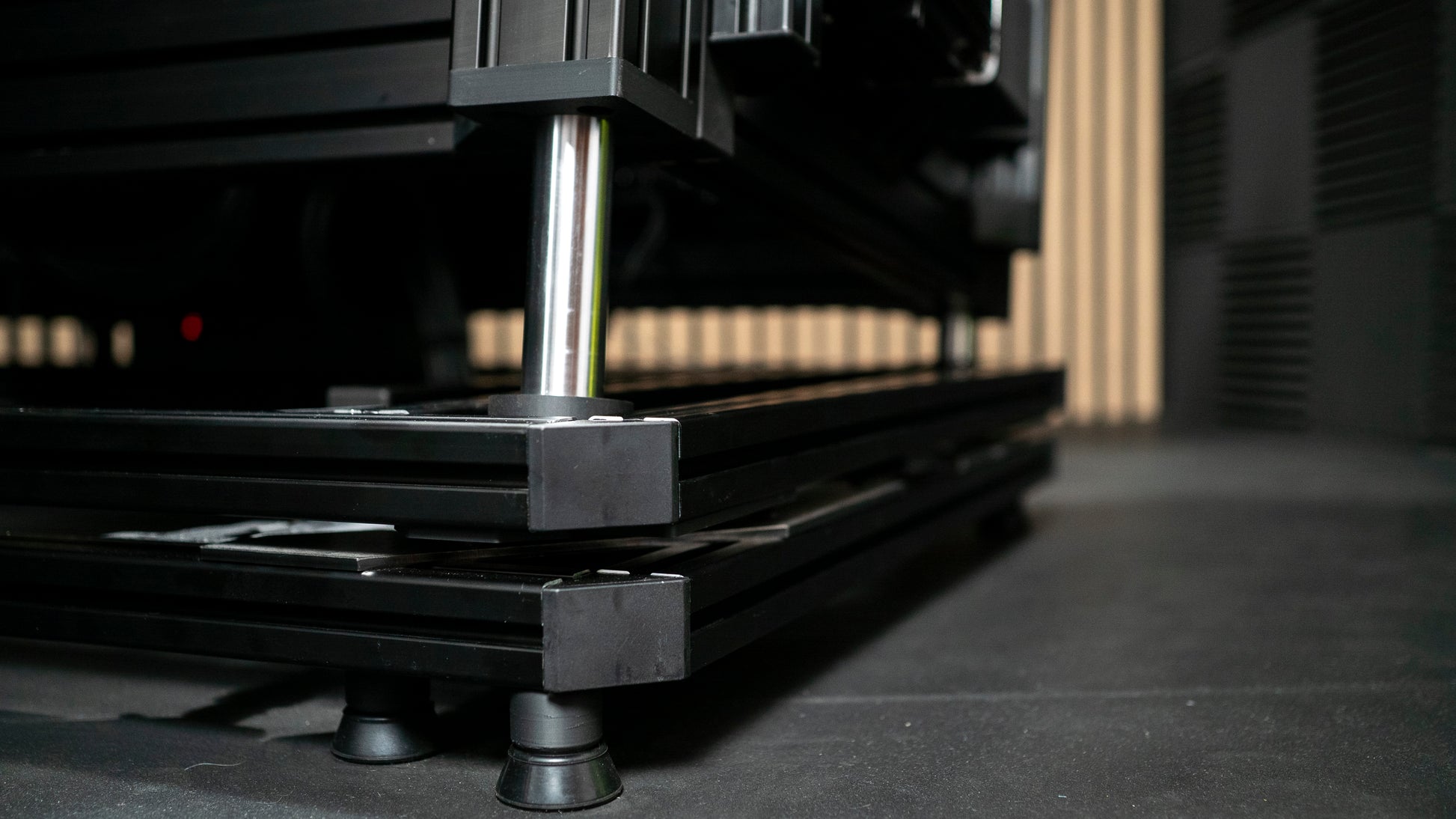

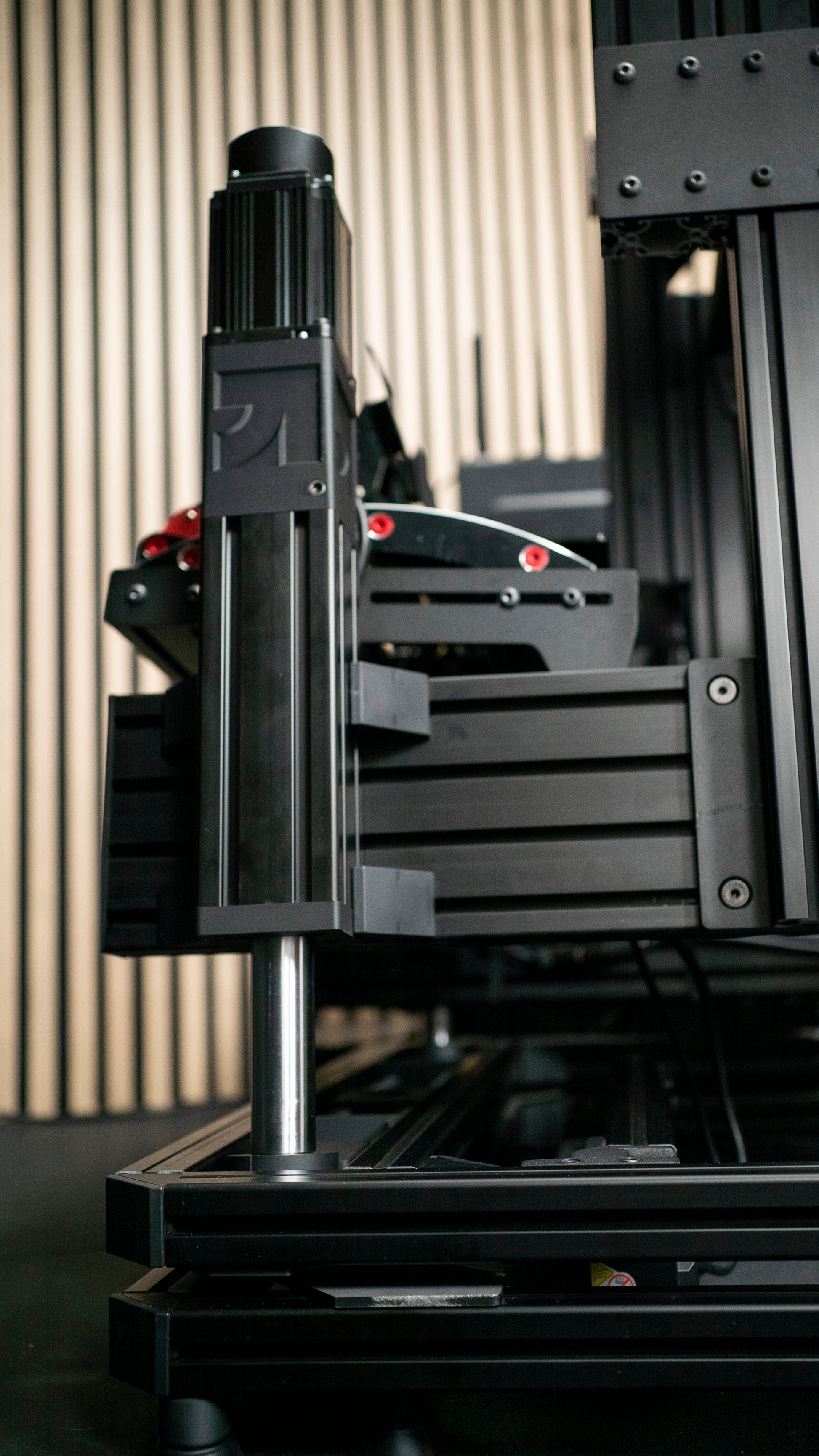

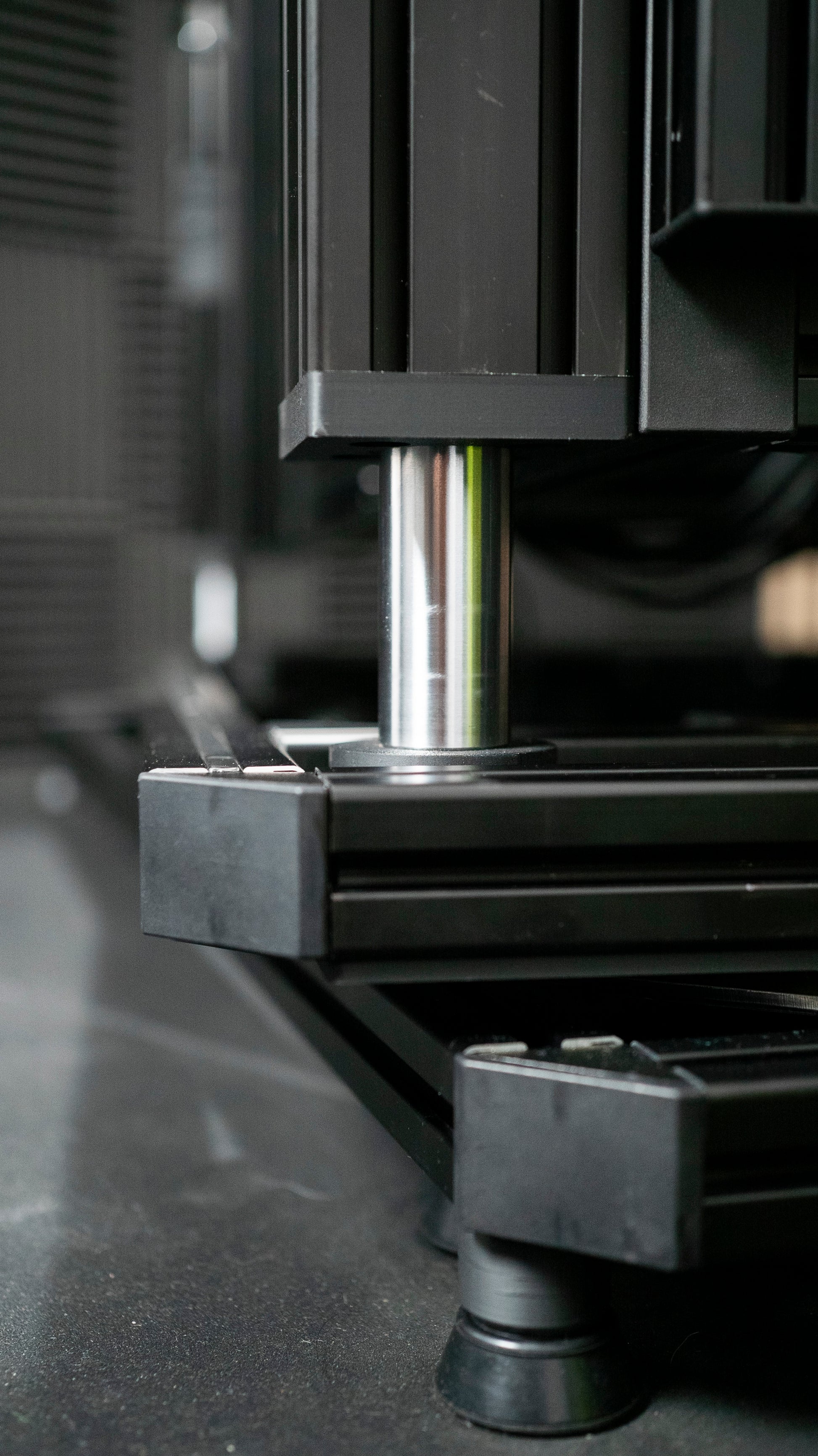

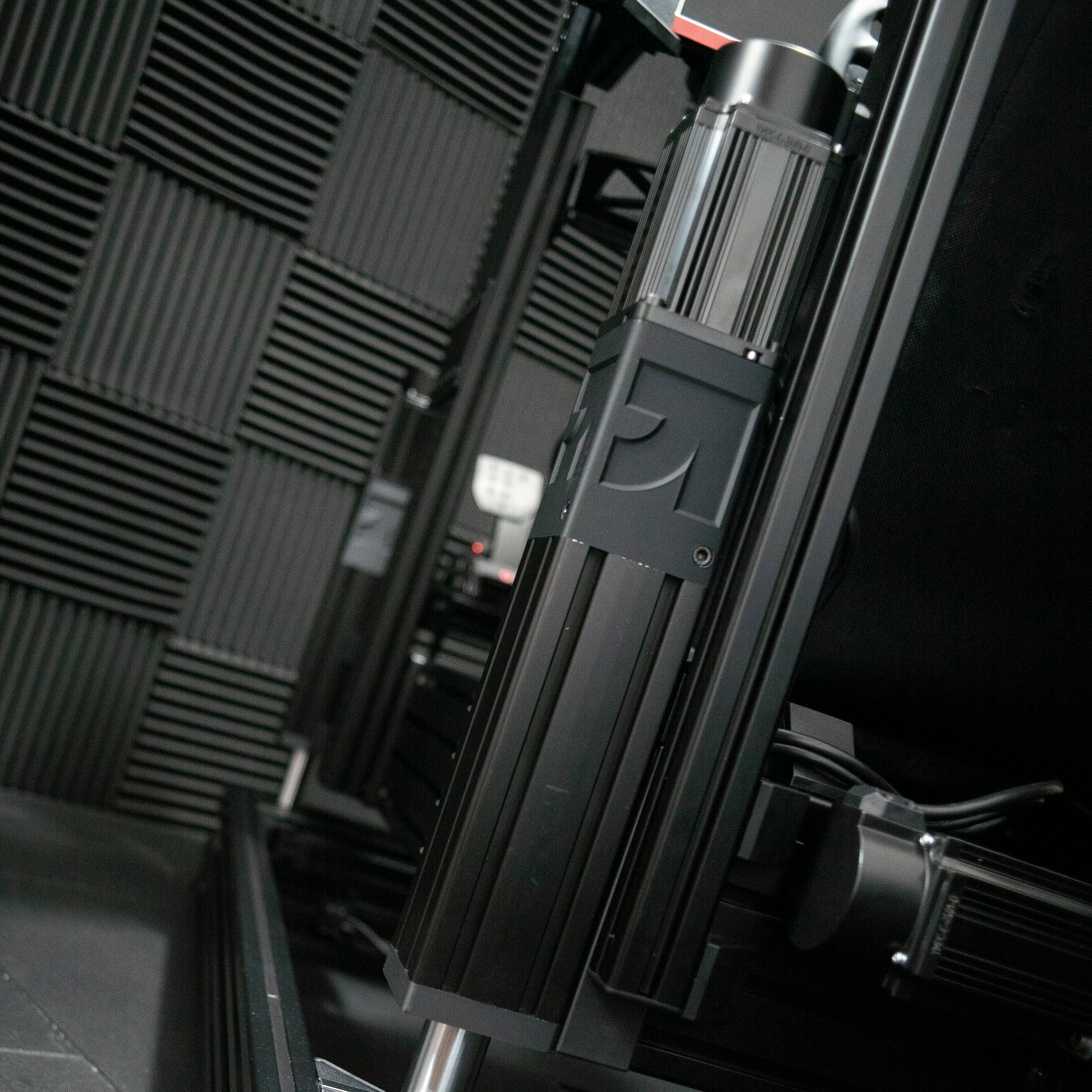

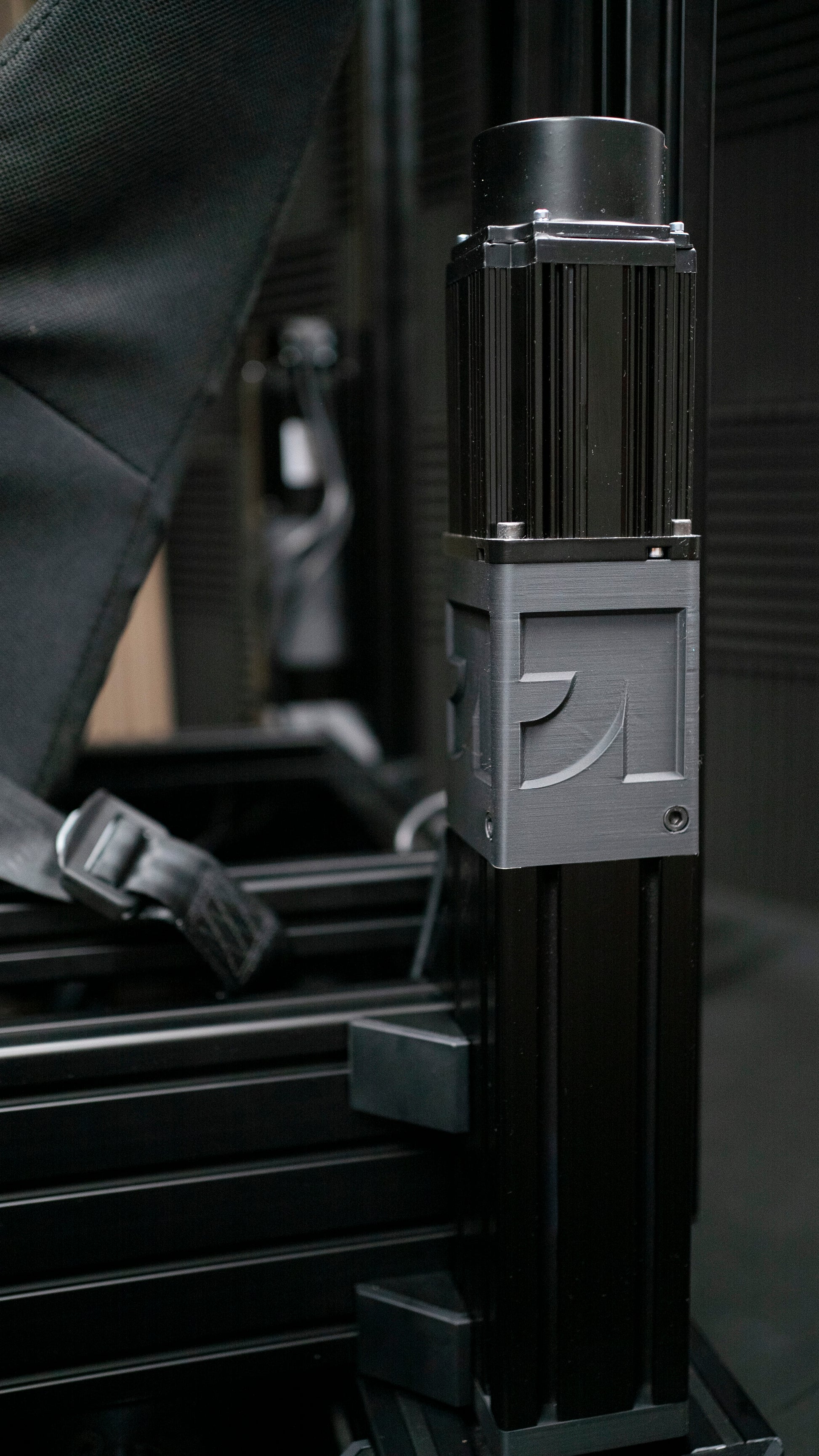

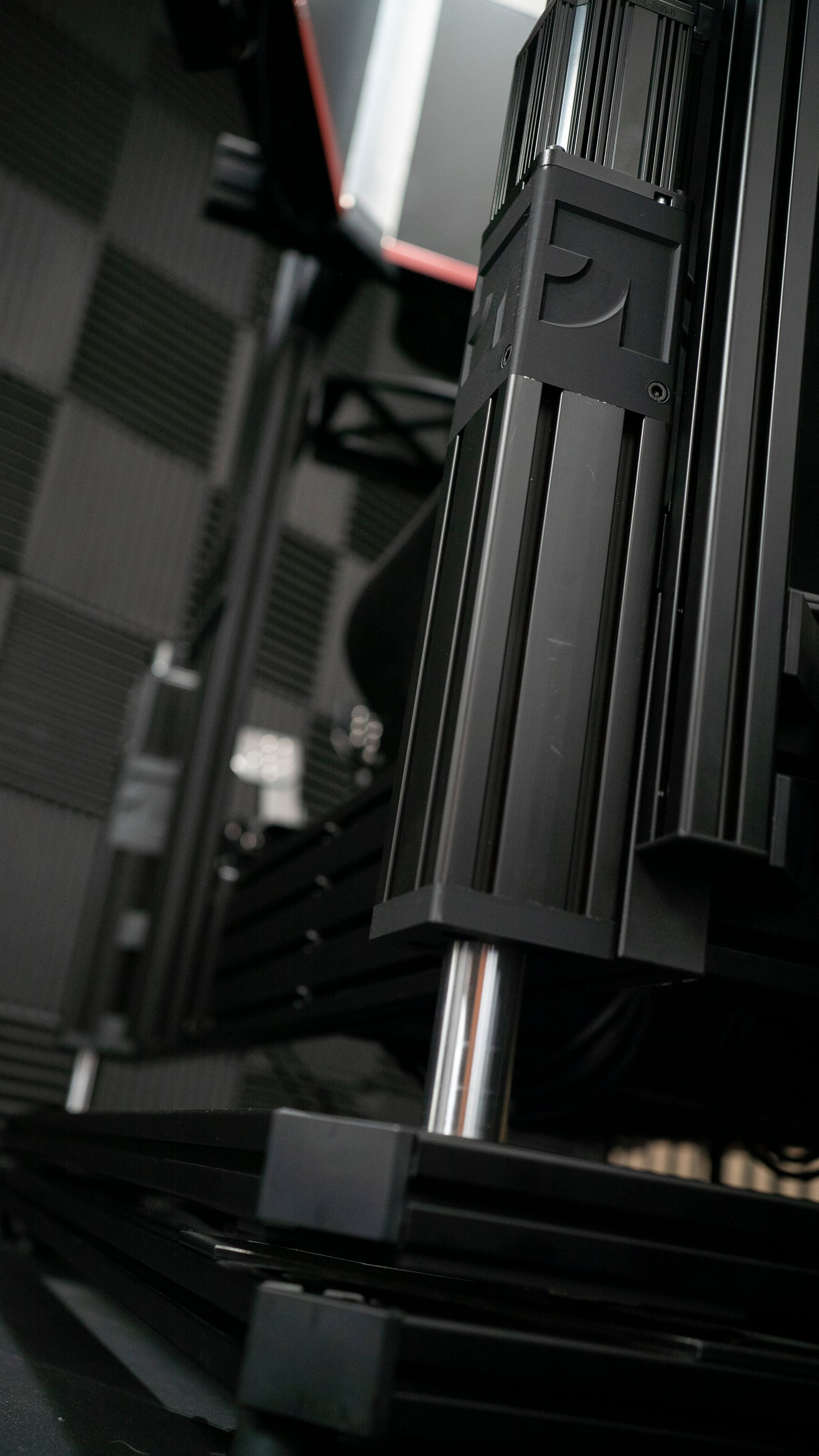

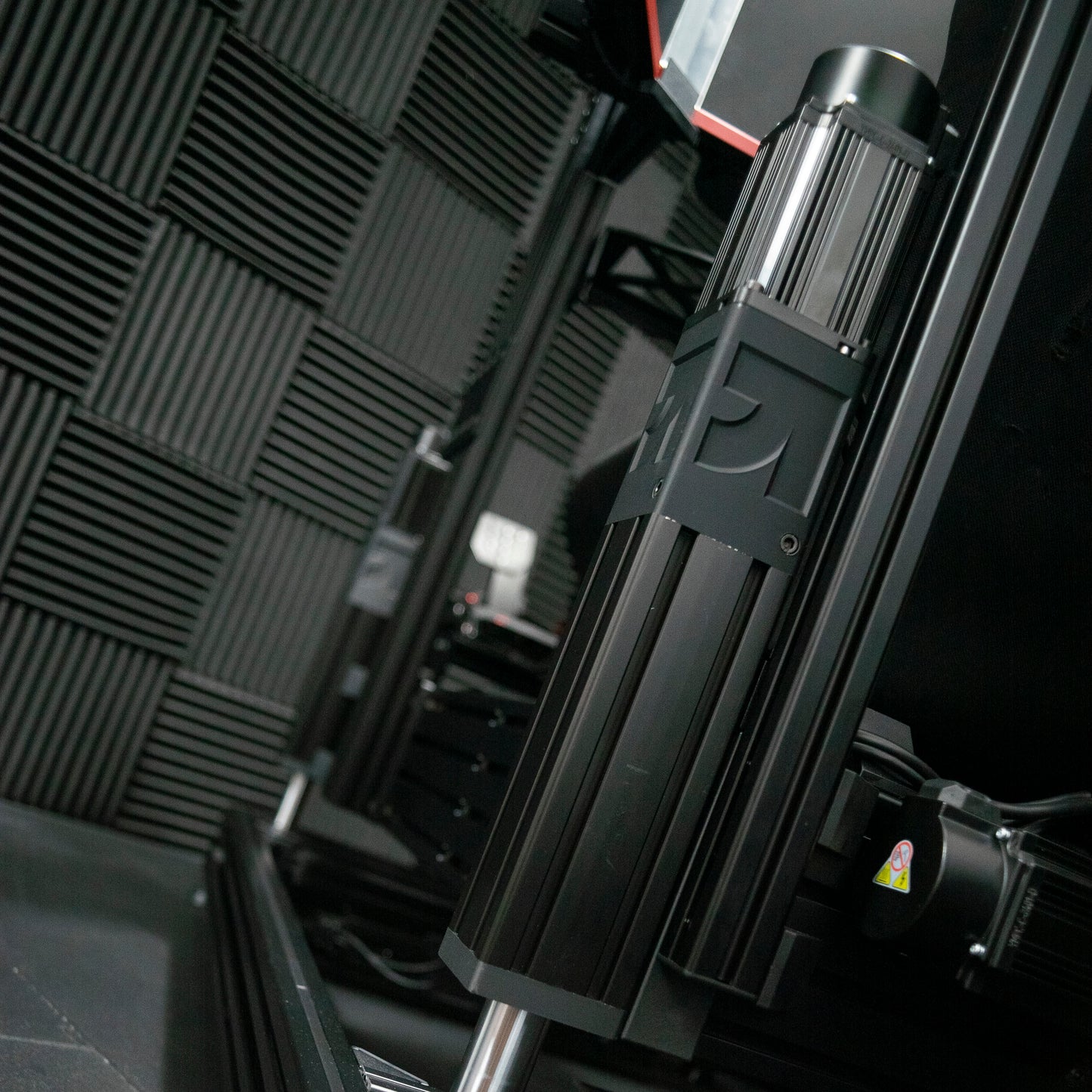

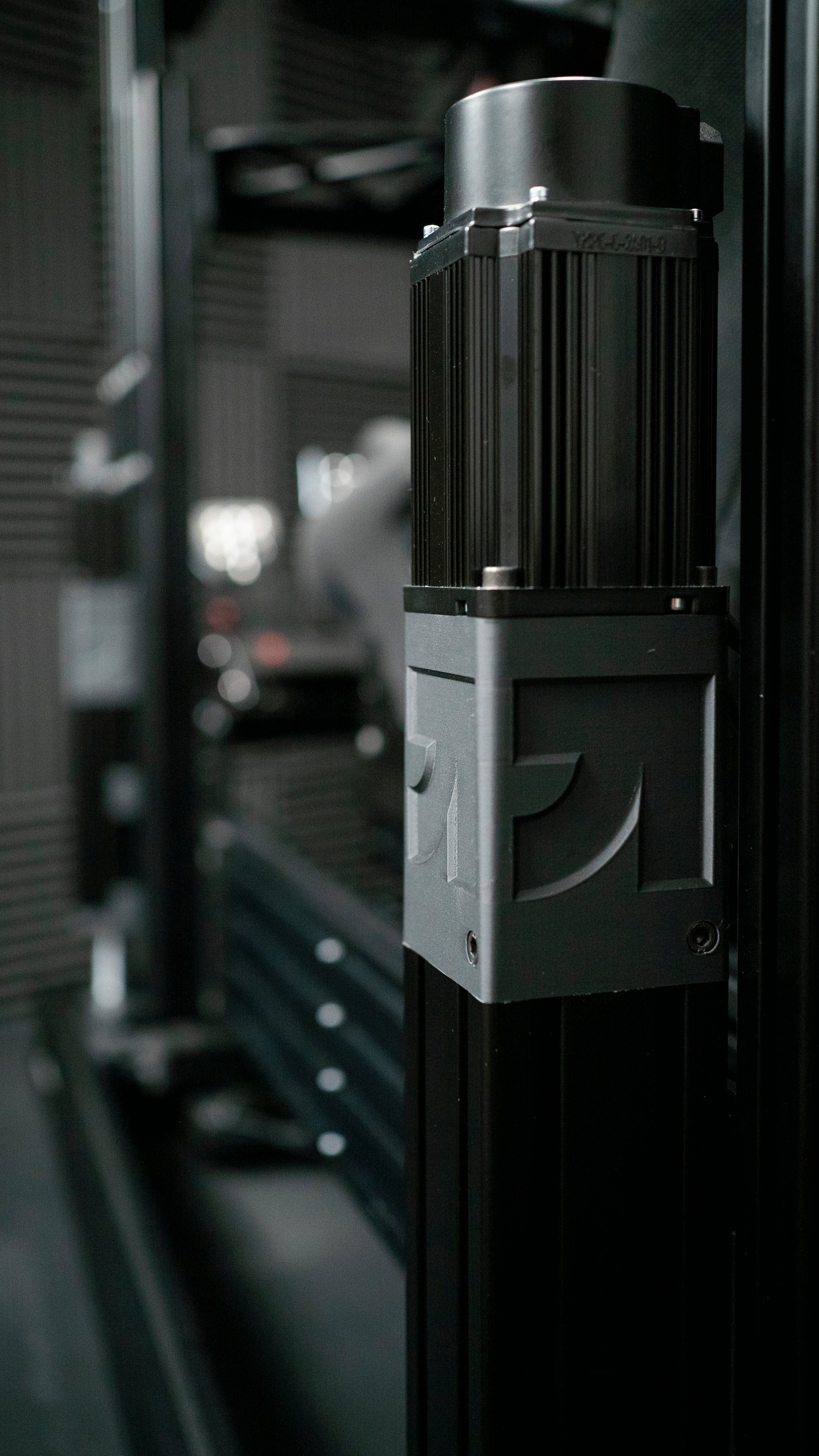

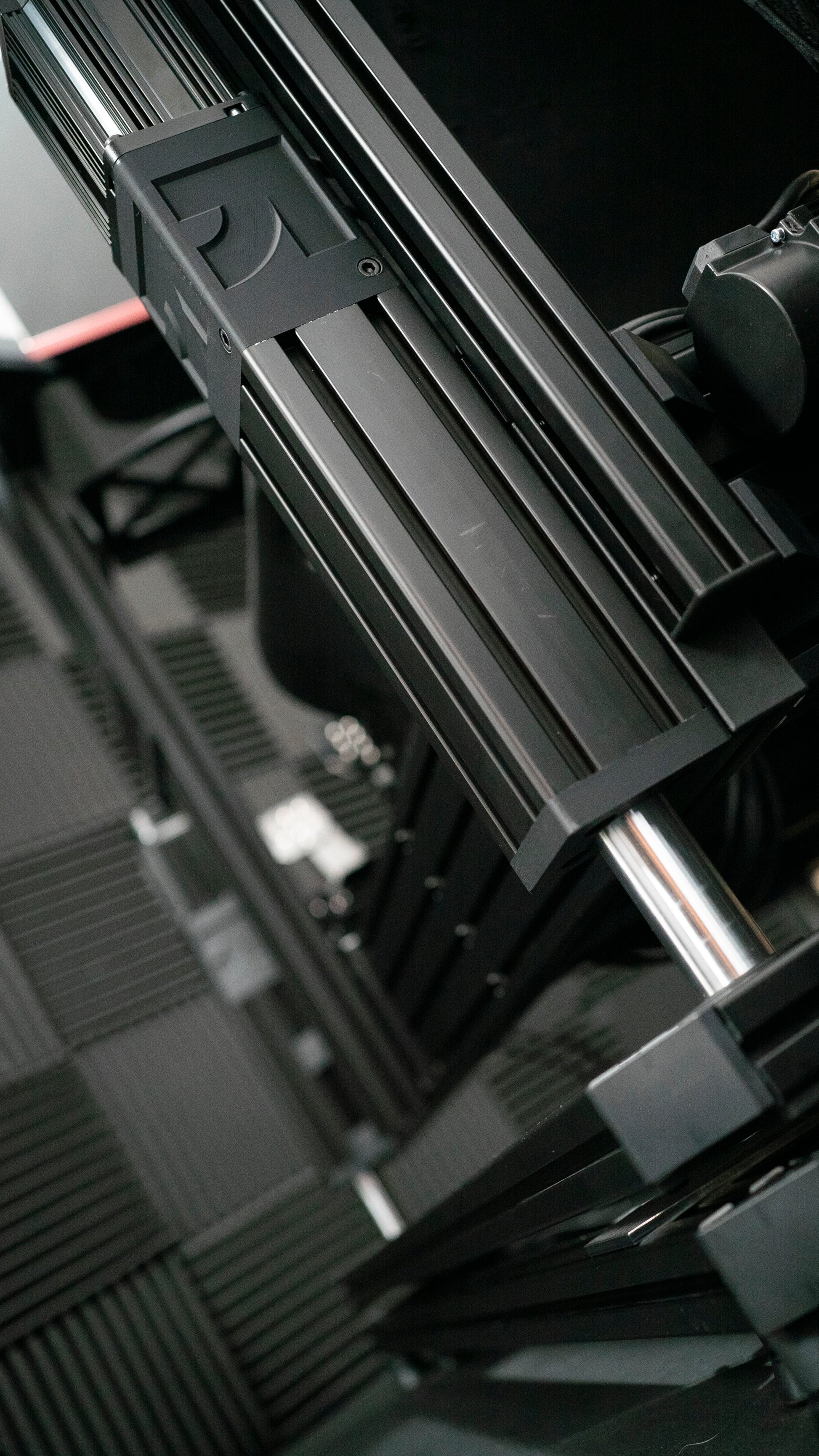

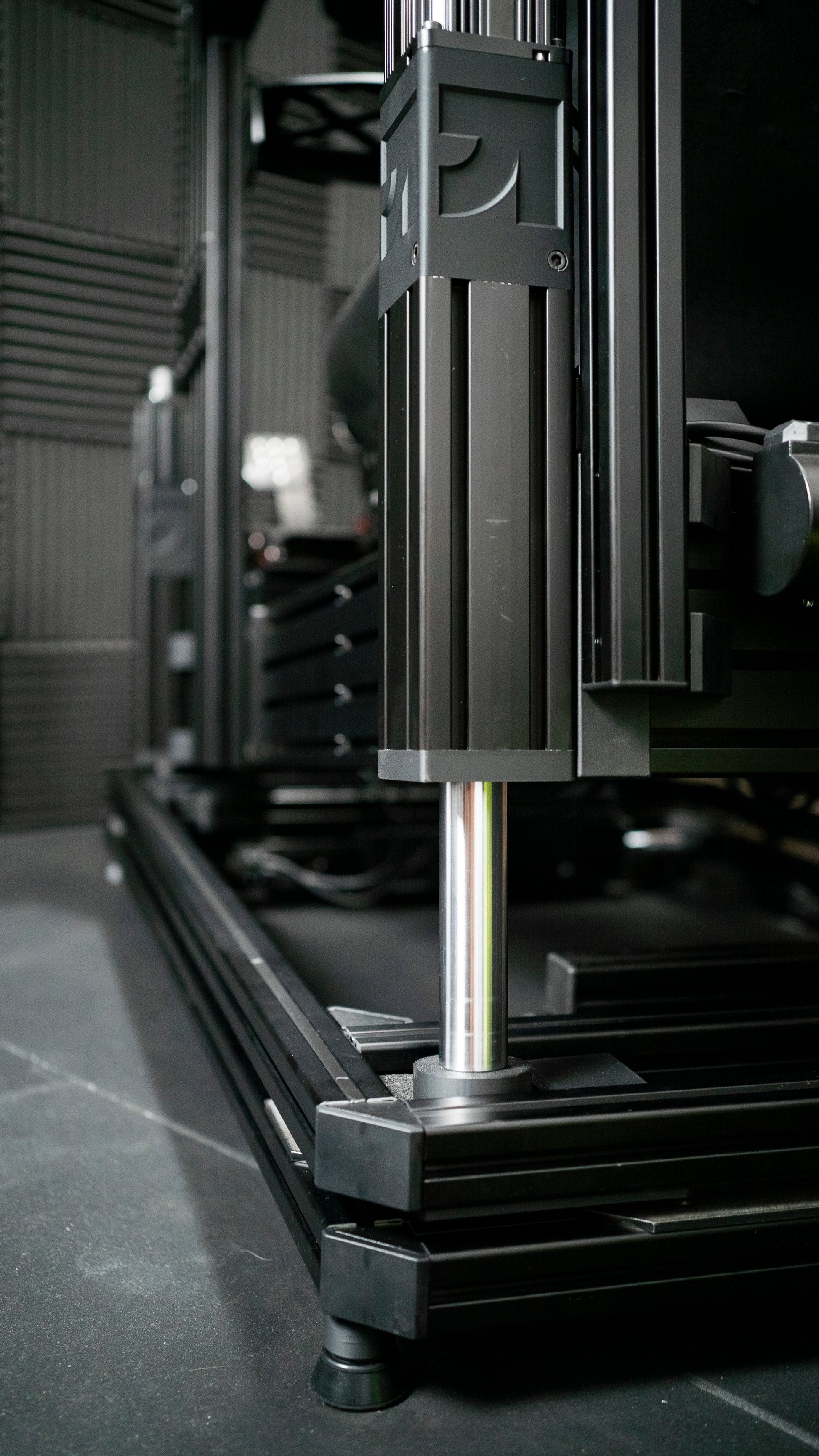

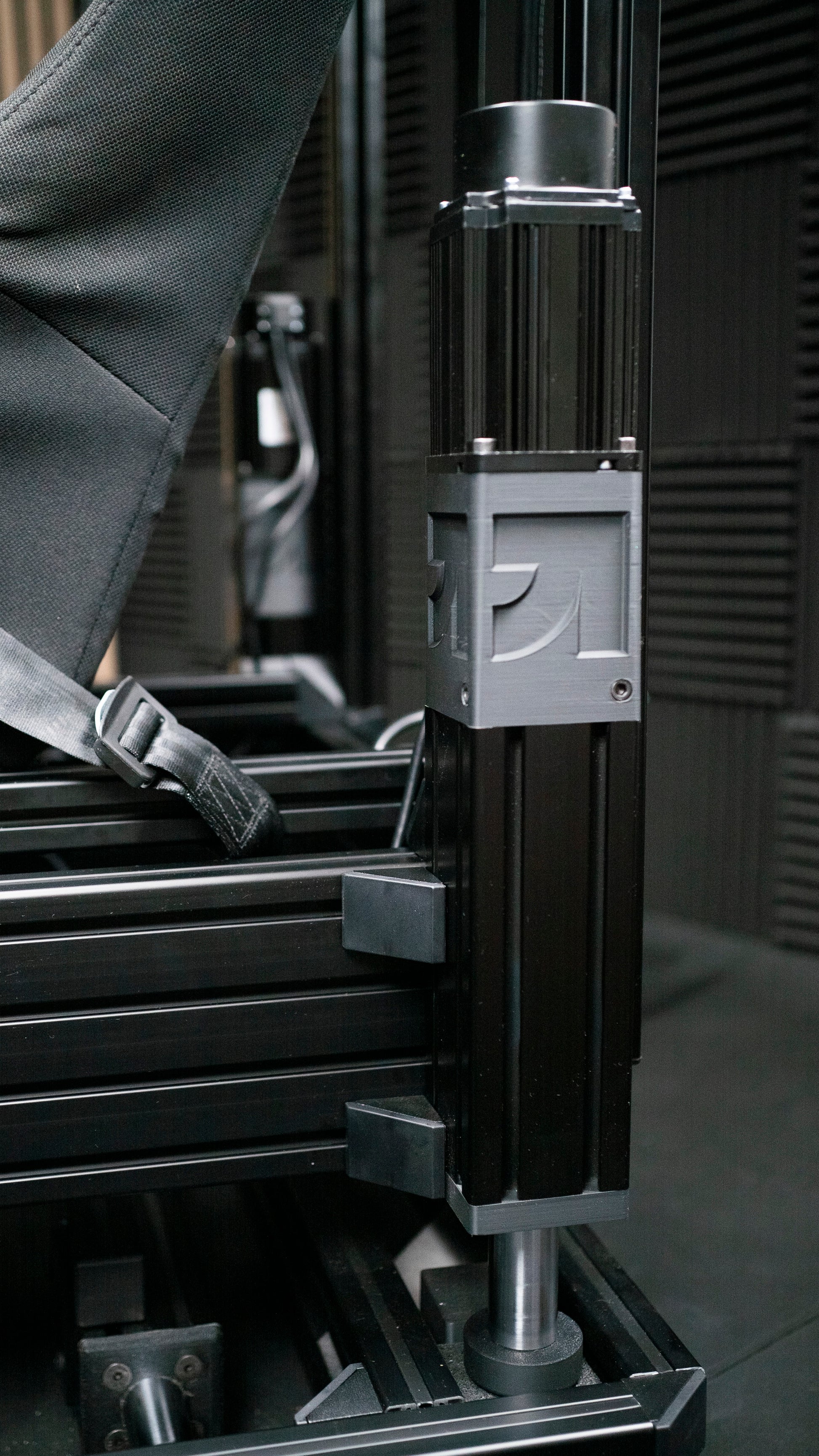

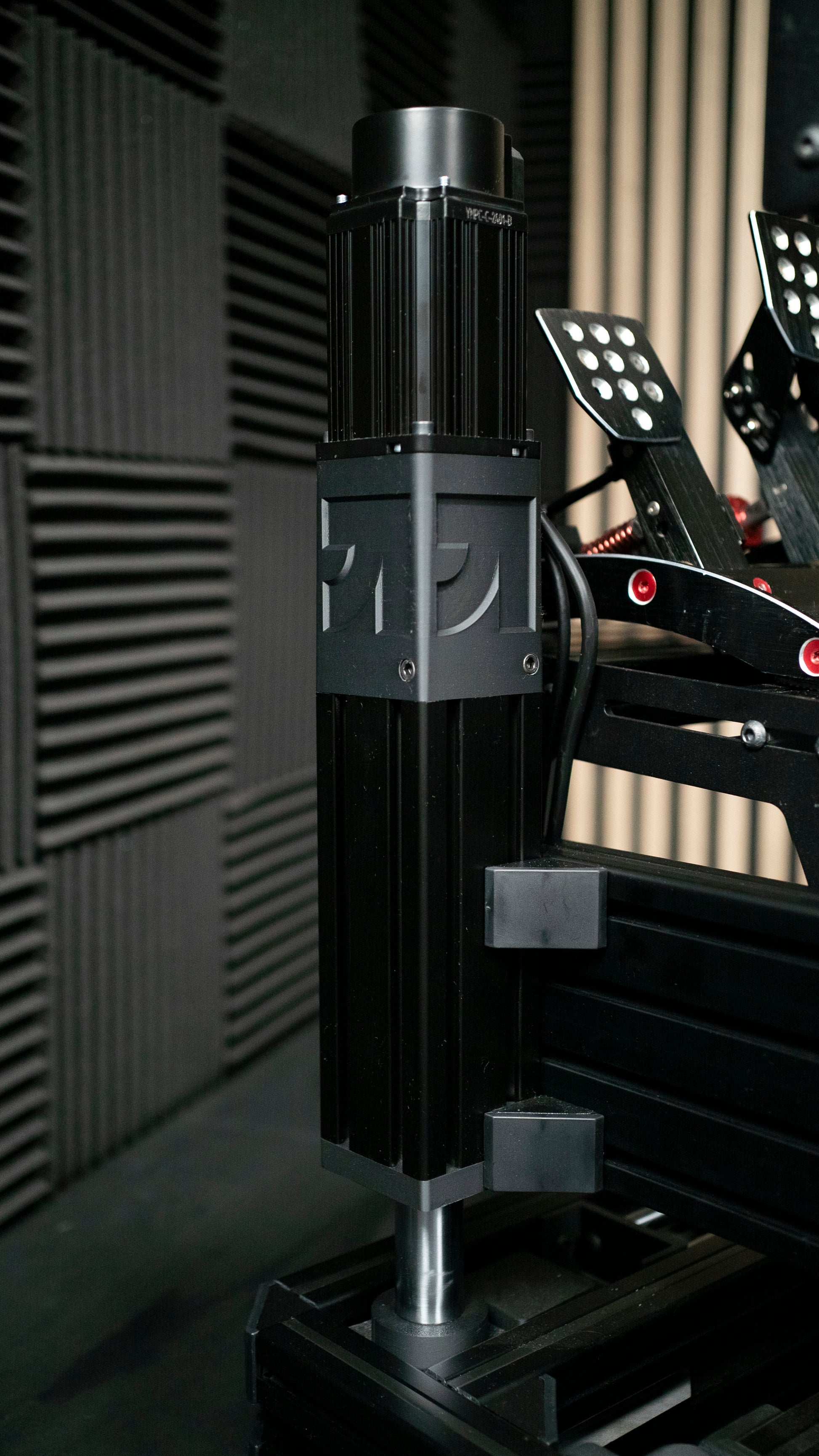

• 3DOF Module: 4 pistons for the 3DOF system with mounting brackets for easy attachment to the cockpit.

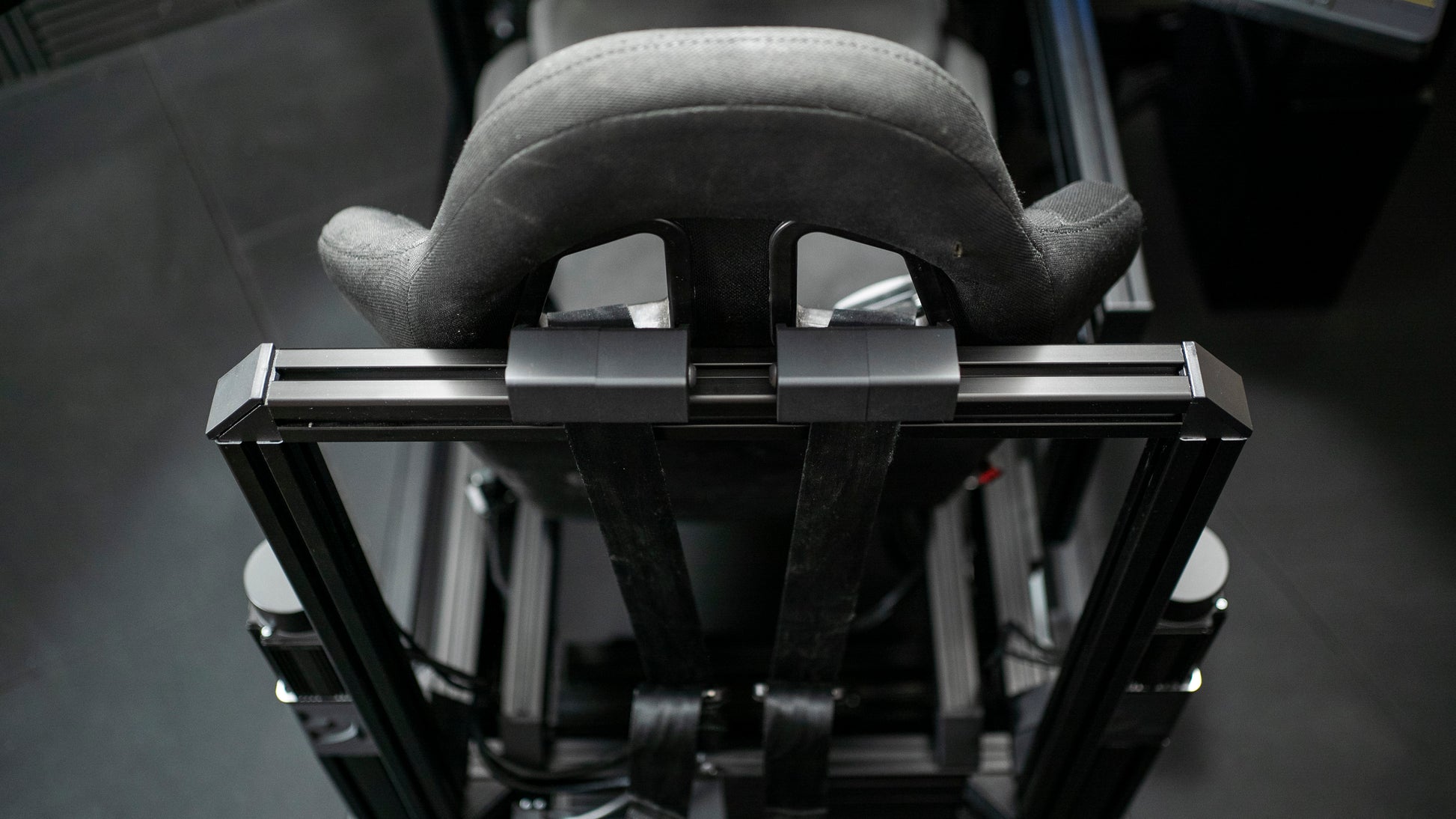

• Belt Tensioner (BT) Module: Includes the belt tensioner motor, mounting bracket for the cockpit, and a bracket for the belts (belts not included).
• Controller Box: Houses all electronics for the simulator in a sleek, compact box with a USB output and power cable.

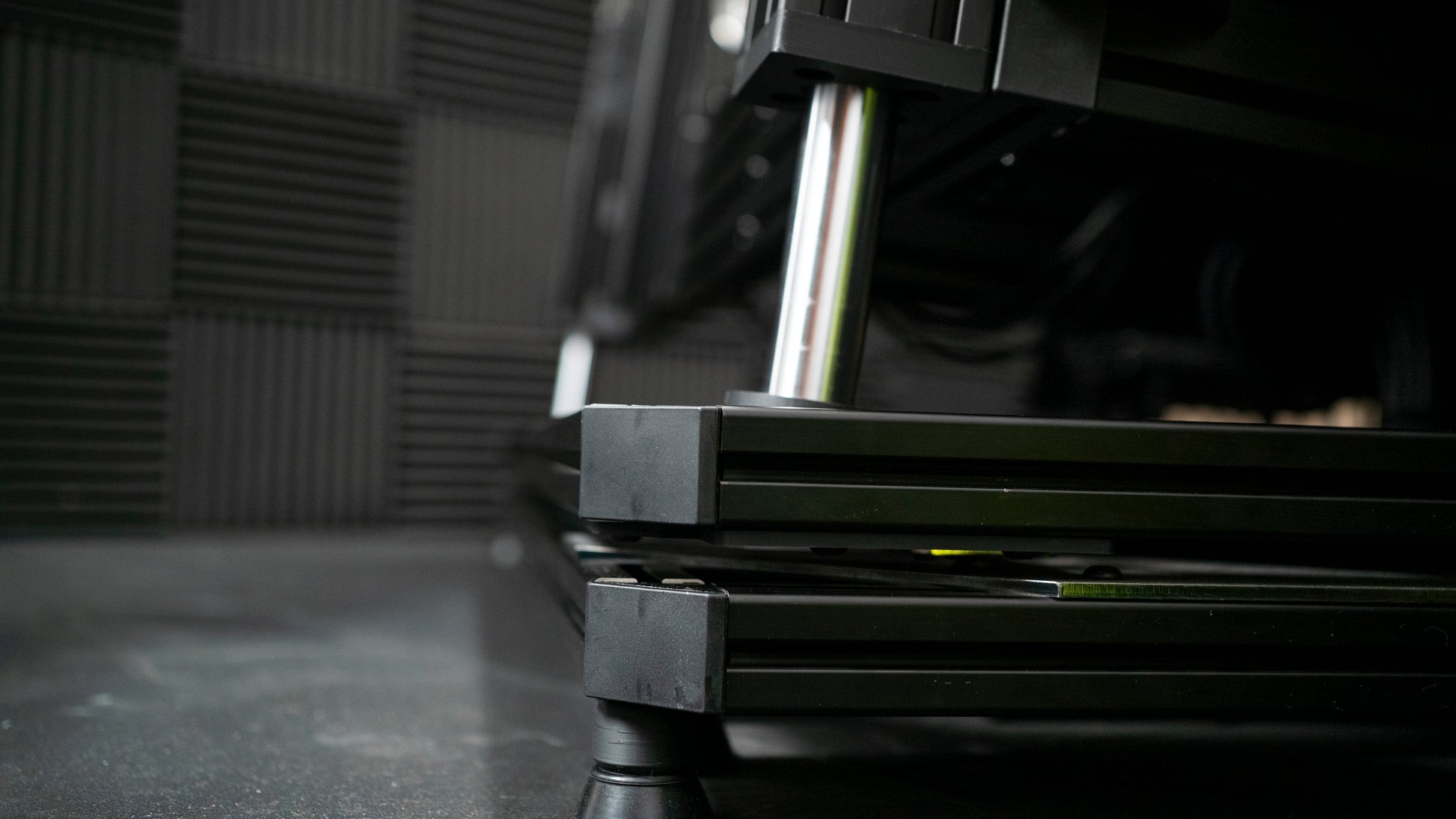

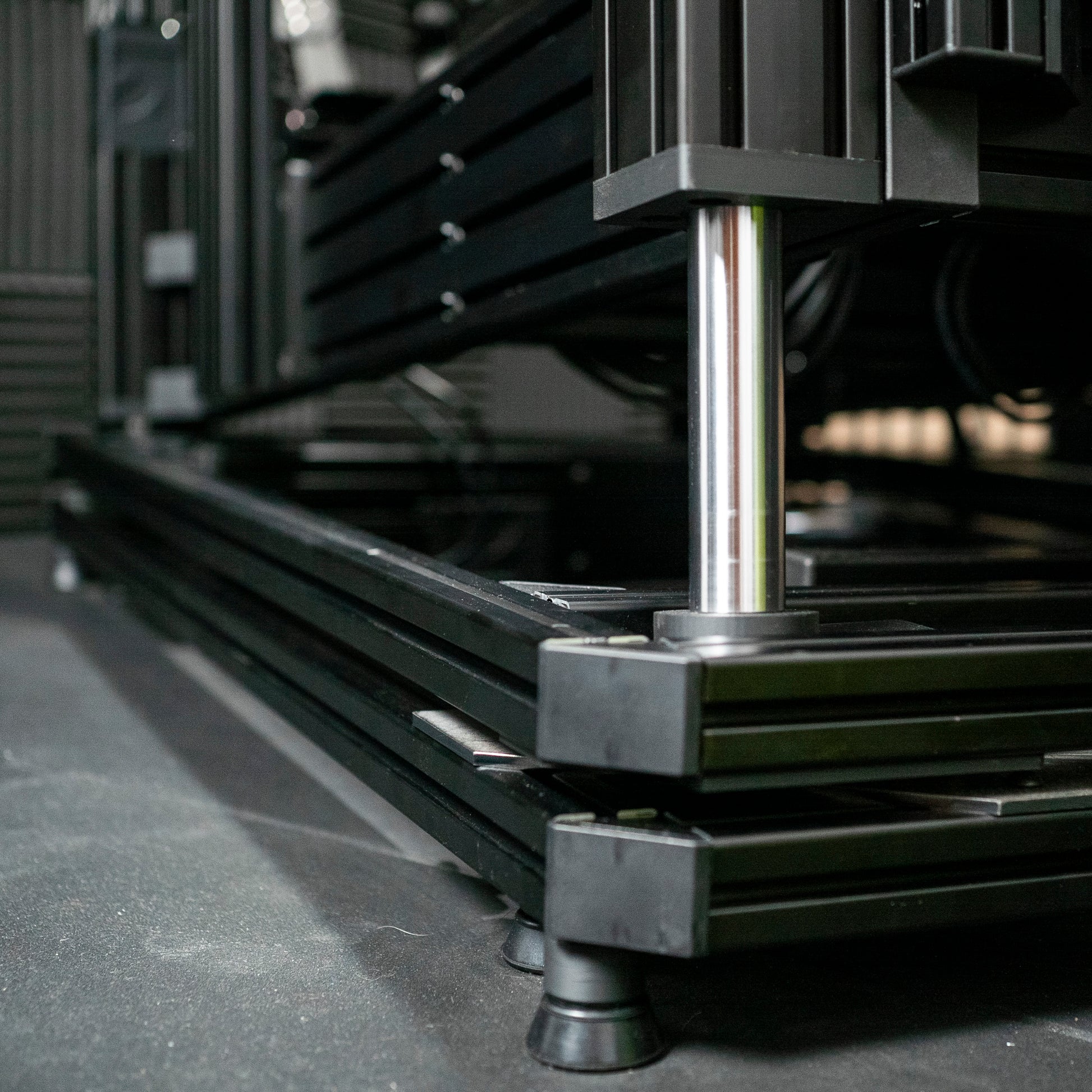

• Traction Loss Platform (TSR-TL): Dual traction loss platform, capable of full front and rear traction loss, as well as combining with sway for a more dynamic experience.

Experience the Future of Sim Racing:

Elevate your sim racing setup with the TSR-1G Motion Simulator—designed for precision, speed, and realism. Whether you're a professional sim racer or a passionate hobbyist, this system offers unmatched performance and customization to take your racing experience to the next level.
